GLASS LINED HEAT EXCHANGERS
Do you need a heat exchanger for your chemical or pharmaceutical application?
QUALITY ASSURANCE AND ACCEPTANCE CRITERIA
- Stagewise inspection conducted by internal Q.C. as per approved quality plan & final inspection by TPI or client .
- General tolerance as per DIN 28006, final dimensions may vary by ± 15 mm, due to multiple heat treatment cycle during glass-lining process
- Hydrostatic Test shall be carried out as per the approved Q.A. plan
- Spark Test for glass-lining check shall be carried out once while lining process at 20,000 Volts and after hydrotest at 10,000 Volts.
- Glass-lining thickness shall range from 1.0 to 2.2 mm
- Bought out components as per manufacturing standards.
DESIGN DATA
Material Specifications
GLASS-LINED PLATE TYPE HEAT EXCHANGER
| Description | Main Vessel | Jacket |
|---|---|---|
|
Design & Manufacturing Code |
Generally as per ASME Sec. VIII Div. I |
Generally as per ASME Sec. VIII Div. I |
A Glass-Lined Plate Type Heat Exchanger is a specialized piece of equipment designed for efficient heat transfer between two different fluids. It comprises a series of plates, typically made of stainless steel, with a glass lining applied to the surface that comes into contact with the fluids. This glass lining provides outstanding corrosion resistance and thermal efficiency.
Key Features of Our Glass-Lined Plate Type Heat Exchangers
- Corrosion Resistance: The glass lining on the plates offers exceptional protection against corrosion, making our heat exchangers ideal for handling aggressive and corrosive fluids.
- High Heat Transfer Efficiency: The design of our plate-type heat exchangers promotes efficient heat exchange on glasslined surface, resulting in improved energy efficiency and reduced operating costs.
- Compact Design: These exchangers are known for their compact and space-saving design, making them suitable for installations with limited space.
- Customizability: We offer a range of plate configurations and sizes, allowing us to tailor the exchanger to meet your specific application requirements.
DIMENSIONAL DETAILS
NOZZLE DETAILS

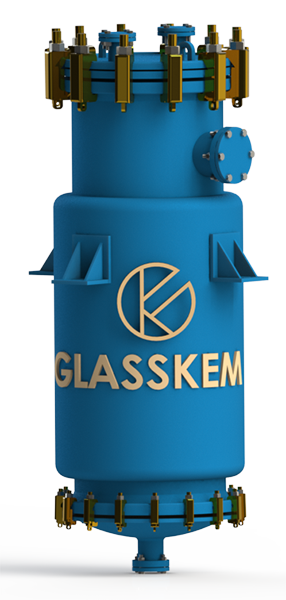

GLASS-LINED SHELL IN SHELL TYPE HEAT EXCHANGER
A Glass-Lined Shell in Shell Type Heat Exchanger is a specialized piece of equipment designed for efficient heat transfer between two different fluids. They are designed in the Shell and shell format for optimum heat transfer efficiency as per customized process need.
Key Features of Our Glass-Lined Shell in Shell Type Heat Exchangers
- Corrosion Resistance: The glass lining on the tubular side provides exceptional resistance to corrosion, making our heat exchangers suitable for handling aggressive and corrosive fluids.
- Product Purity: The glass lining ensures that there is no contamination or interaction between the fluids being exchanged, making these exchangers ideal for industries where product purity is critical, such as pharmaceuticals and chemicals.
- Temperature Control: Our Glass-Lined Shell in Shell Type Heat Exchangers are highly effective at maintaining precise temperature control, making them essential for processes that require accurate thermal management.
- Versatility: These heat exchangers are adaptable to a wide range of applications, including heating, cooling, and condensing processes in various industries.
DIMENSIONAL AND NOZZLE DETAILS
